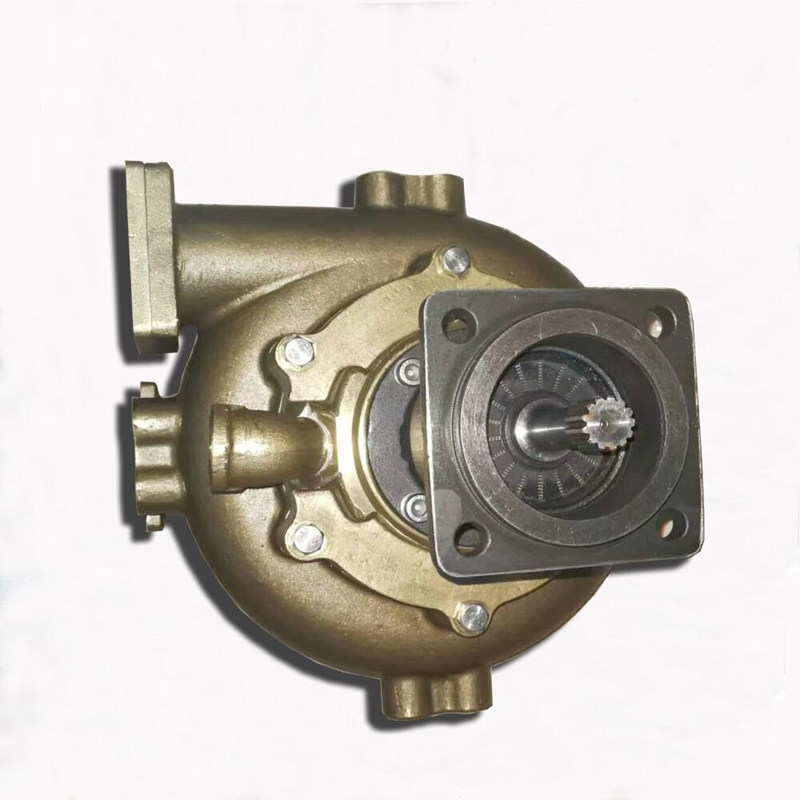

4314820 Truck Cummins Water PumpsCCEC K50



How does a diesel water pump work?
The working principle of the diesel water pump is: the water is filled in the pump casing before the pump starts (or there is water in the pump casing). After the start, the impeller rotates at a high speed to make the water in the impeller channel flow toward the volute. A properly functioning water pump is vital to the lifespan and performance of your engine. The water pump is called upon to create a flow of the coolant through the engine (the heat source) where it can pick up excess heat and transport it to the radiator (heat exchanger). Then, the radiator (the heat sink) transfers the heat to the air, all with the least amount of power loss from the engine.

Engine	Description	Part #	Part #	Part #	Part #	Part #
4BT	water pump	3802358	3286278	4089731	4935793	3800883
6BT	water pump	3285410	3960342	3286275	3928396	3802004
6BT	water pump	3928396	3802944	3802971	3928362	3283602
6BT	water pump	3903749	3913432	3920311	3924141	3285414
6BT	water pump	3802970	3283603	3917897	4089700	3286277
6BT	water pump	3285411	6735611501
6CT	water pump	3285323	3286293	3357498	3415366	3800974
6CT	water pump	3800975	3802081	3802442	3802973	3804927
6CT	water pump	3806180	3913430	3923568	3929612	3940052
6CT	water pump	3966841	4089647	4309418	4376359	4934058
6CT	water pump	5291445	5346205	3966941	3284162	3806180
6CT	water pump	3907808	3913430	3802081	3804883	3929615
6CT	water pump	3284066	5402699
ISBE	water pump	4891252	3800984	5312296	6741611530
ISF	water pump	5269897	5269784	5308708		4328805
ISF	water pump	5257960	5263374	5288908	5333035	5333148
ISM	water pump	3800737	4955705	3803403	3800745	3073693
ISM	water pump	4972853	4965430	4972861	4299042	2882144
ISM	water pump	4965431	4972852	3073694	4004612	3896238
ISM	water pump	3882670	3068848	3803260
K38	water pump	3634029	3635807	3627083	3635063	3643967
K38	water pump	3647029	4372338	3001714	3028990	3050443
K38	water pump	4376119
K	water pump	3635783	3643969	4089302
K19	water pump	4025310	3098964	3098960	3022920	3804573
K19	water pump	3086033	3201988	3098977	3086115	3098962
K19	water pump	3098961	4081095	4081093	3086034	3018785
NT	water pump	3801708	3051408	3022474	3801788	3150131
NT	water pump	3007316	3022479	3051384	3024386	3018428
NT	water pump	3004923	3045943	3045943RX
ISX	water pump	4089908	3800495	4024845	4025973	3681106
ISX	water pump	3680344	4026702	4059254	4920463	4923759
ISX	water pump	3800296	4025097RX	4089908NX	4089908RX	4089910
ISX	water pump	4089158	3682311	4920465
