Product Details:
|
| Brand&model: | Cummins KTA19-G4 | Standby Power: | 450kw |
|---|---|---|---|
| Cylinders: | 6 In Line Arrangement | Bore*Stroke: | 159*159mm |
| Displacement: | 19L | Lubrication Oil Capacity: | 50L |
| Fuel Consumption At 100% Load: | 202g/kw.h | Speed Governor: | Electric |
| Frequency: | 50HZ | Voltage: | 380/220v(voltage Can Be Customized) |
| Optional Type: | Open/soundproof/trailer | Size Of Open Type: | 4700*2100*2400mm |
| Weight Of Open Type: | 3890kg | ||
| High Light: | trailer cummins electric generator,KTA19 G4 prime power diesel generator,G4 Electric 400kw diesel generator |
||

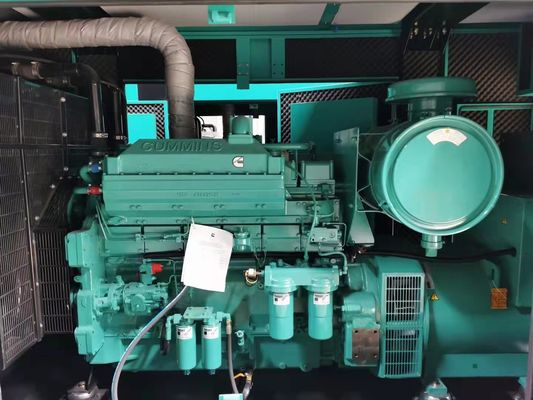

Genuine Cummins CCEC Diesel Generator Set 400kw 450kw Prime Power Diesel Powered By Cummins Engine KTA19-G4
450KW Prime Power Diesel Generator
| Diesel generator Details | |
| Model | CLK-580GF |
| Power | 580kva |
| Frequency | 50HZ |
| Voltage | 380/220v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 4700*2100*2400mm |
| Weight of Open type | 3890kg |
| With Diesel Engine | |
| Brand&model | Cummins KTA19-G4 |
| Standby Power | 450kw |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 159*159mm |
| Displacement | 19L |
| Lubrication Oil Capacity | 50L |
| Fuel Consumption at 100% Load | 202g/kw.h |
| Speed Governor | Electric |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Hengsheng/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
Generator Supply Scope
| 1. Engine: | Brand-new engine. | |||||||||||
| 2. Alternator: | Brand new brushless alternator, single bearing, IP23, H insulation class. | |||||||||||
| 3. Base Frame: | Heavy duty steel channel base frame. | |||||||||||
| 4. Radiator: | With safety guard. | |||||||||||
| 5. Vibration Damper | Vibration damper between Engine/Alternator and base frame | |||||||||||
| 6. Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option | |||||||||||
| 7. Controller: | DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10, MRS16, AMF20, AMF25 for option. | |||||||||||
| 8. Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. | |||||||||||
| 9. Battery: | Varta Brand,high capacity sealed maintenance free battery c/w battery cables. | |||||||||||
| 10. Fuel Tank: | 8 hours base fuel tank | |||||||||||
| 11. Tool Kits & Manuals: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. | |||||||||||
Jvh Industry and Trading Co.,Ltd specializes in distributing engine assembly and engine generator set to more than 20 countries under 10 year's development.
JVH focus on providing genuine parts and top aftermarket spare parts ,as well as providing professional after sales service , so it receives good reputation among clients all over the world. It will keep such spirit and improve its service to be the excellent distributor in diesel engine parts.
Now it has strong and stable supplying system by investing big factories of cylinder blocks, cylinder heads, crankshafts, camshafts, pistons, cylinder liners etc.
Our professional engineers are available to provide on-site installation overseas.
